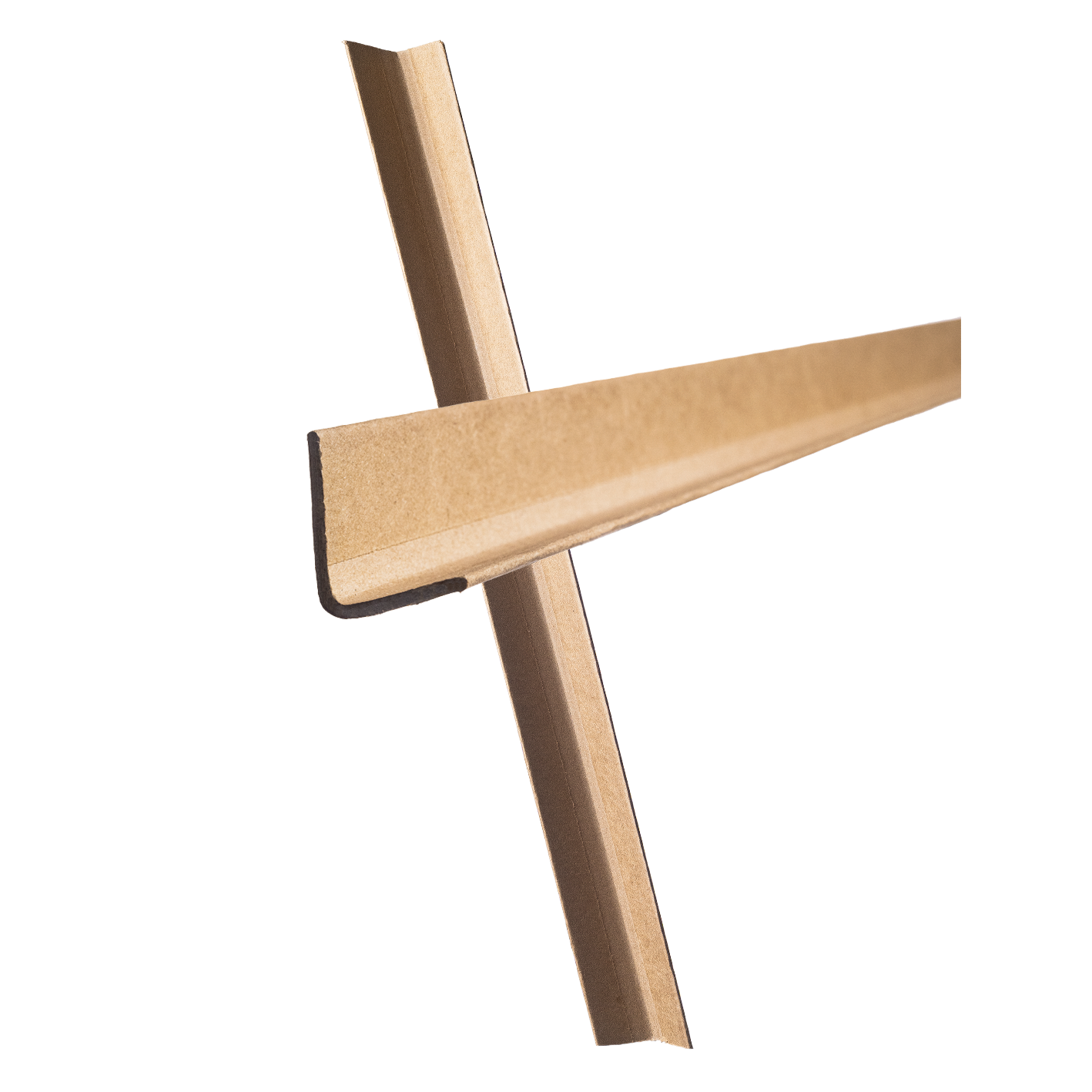

EDGE PROTECTOR
Grupo Ortiz edge protectors are critical packaging elements, designed to reinforce the load unit and protect the vulnerable areas of the pallet. Their composition guarantees high resistance to compression.
Stability and Perimeter Protection
Our technology allows for significantly improved vertical stacking stability, preventing strapping damage and load collapses, which reduces damaged goods claims and optimizes warehouse safety.
- - BROWN KRAFT EDGE PROTECTOR
- - WHITE KRAFT EDGE PROTECTOR

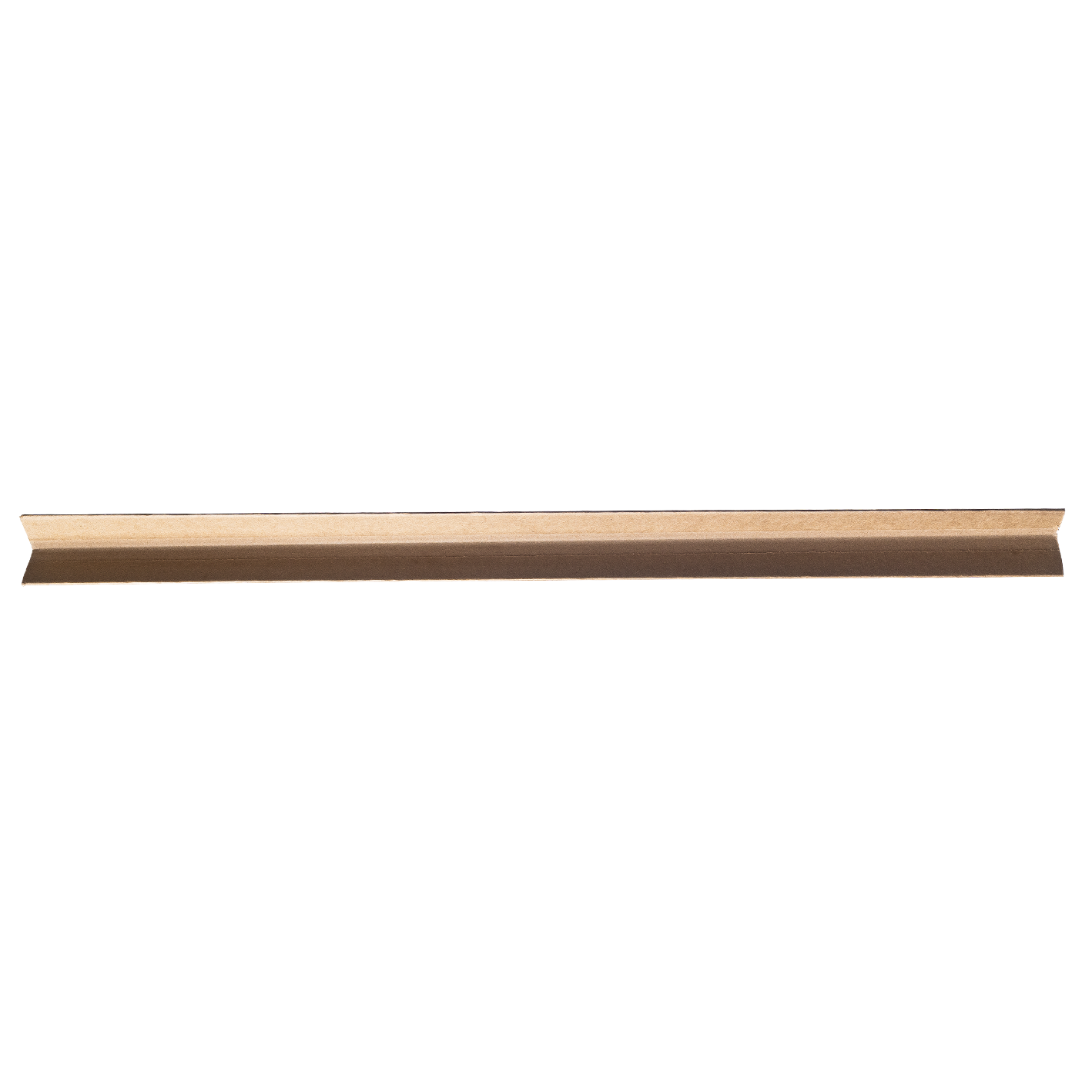

BROWN KRAFT EDGE PROTECTOR
Designed to protect edges and corners during transport and storage, this edge protector distributes pressure evenly, preventing deformation and damage to merchandise. Its structure offers resistance and stability in demanding packaging applications.
| FLANGE | 1.5×1.5 in ±1/8 0.04×0.04 yd ±0.00 yd | 1.75×1.75 in ±1/8 0.05×0.05 yd ±0.00 yd | 2×2 in ±1/8 0.06×0.06 yd ±0.00 yd | 2.5×2.5 in ±1/8 0.07×0.07 yd ±0.00 yd | 3×3 in ±1/8 0.08×0.08 yd ±0.00 yd |
| THICKNESS | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% |
| LENGTH | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd |
Available colors: Kraft and white Kraft
WHITE KRAFT EDGE PROTECTOR
Designed to protect edges and corners during transport and storage, this edge protector distributes pressure evenly, preventing deformation and damage to merchandise. Its structure offers resistance and stability in demanding packaging applications.
| FLANGE | 1.5×1.5 in ±1/8 0.04×0.04 yd ±0.00 yd | 1.75×1.75 in ±1/8 0.05×0.05 yd ±0.00 yd | 2×2 in ±1/8 0.06×0.06 yd ±0.00 yd | 2.5×2.5 in ±1/8 0.07×0.07 yd ±0.00 yd | 3×3 in ±1/8 0.08×0.08 yd ±0.00 yd |
| THICKNESS | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% | 0.080 in to 0.300 in ±5% 0.0022 yd to 0.0083 yd ±5% |
| LENGTH | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd | 11.81 in to 118.11 in ±0.12 in 0.33 yd to 3.28 yd ±0.00 yd |
Available colors: Kraft and white Kraft
